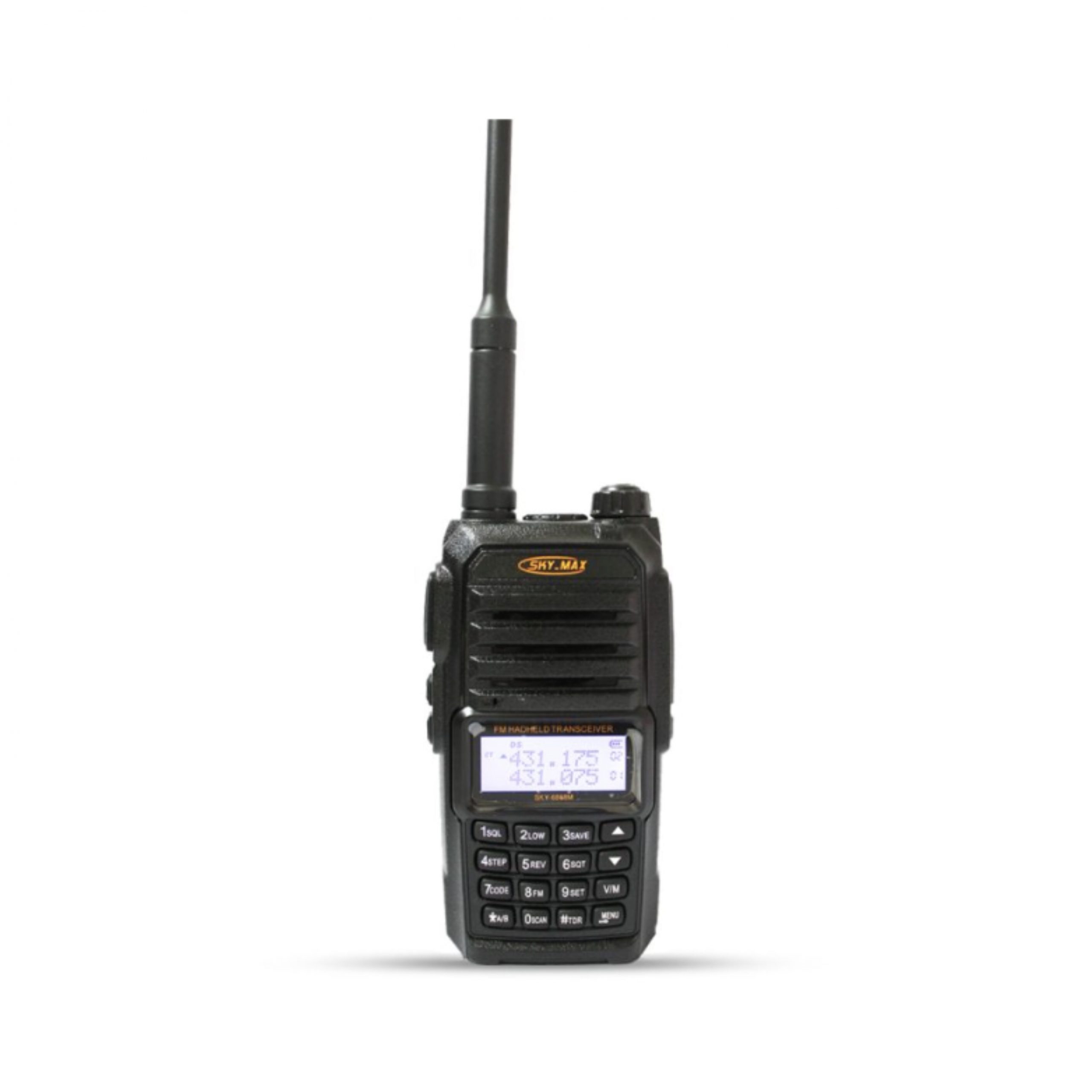

Skymax 6868M
Quick Overview
– Frequensi dual band plus radio FM
– VHF : 136MHz – 175MHz
– UHF : 400MHz – 470MHz
– Power Hight 5W
– Hemat Baterai
– BATT 2200mah
– 128 Channel Memory
– 25 Channel untuk menyimpan Radio FM
– ANI Code
– Scan Otomatis CTCSS / DCS
– DTMF Decoding & Encoding
– 3 Pilihan Warna LCD
Deskripsi
Transmitter (ETSI EN 300 086 standard testing ) |
|
| Frequency Stability | ±2.5ppm |
| Modulation Limiting | ±2.5KHz |
| Audio Distortion | ≤3% |
| Audio Response | (+3dB~-3dB) |
| Adjacent Channel Power | ≥65dB |
| Spurious Radiation | ≤7.5uW |
| Occupied Bandwidth | ≤16KHz |
| Channel Spacing | 25KHz(Wide Band) 20KHz(Middle Band) 12.5KHz(Narrow band) |
| Phase-locked Step | 5KHz,6.25KHz |
| Operating Voltage | 7.4 V DC |
| Frequency Stability | ±2.5ppm |
| Operating Temperature | -20°C +60°C |
Receiver (ETSI EN 300 086 standard testing ) |
|
| RF Sensitivity | ≤0.18μV |
| Audio distortion | ≤3% |
| Audio Response | +2~-10dB |
| Adjacent Channel Selectivity | ≥60dB |
| Intermodulation Rejection | ≥65dB |
| Spurious Rejection | ≥70dB |
| Blocking | ≥80dB |
| OEM/ODM | welcome |
| Warranty | 1 year for radio, 6 monthes for battery |
